What is RFID and How Does It Work?

‍Introduction to RFID

In the modern era of technology, businesses and organizations are constantly seeking innovative ways to streamline processes, improve efficiency, and enhance data management.  One such powerful technology that has emerged as a game-changer in various industries is Radio Frequency Identification(RFID).  This article aims to provide an in-depth understanding of RFID, its working principles, components, advantages, applications, and comparisons with other identification technologies like barcodes and QR codes.  We will also discuss the essential aspects of RFID security, privacy, standards, and its promising future.

Basic definition and features of RFID technology

Radio Frequency Identification (RFID) is a wireless communication technology that uses radio waves to identify, track, and collect data from objects and people.  RFID systems consist of RFID tags, which are attached to items, and RFID readers, which communicate with the tags to retrieve the stored information.  Some key features of RFID technology include:

·     Non-line-of-sight reading capability, allowing tags to be read even if they are not directly visible to the reader

·     The ability to process multiple tags simultaneously, increasing efficiency and speed of automated data collection

·     Greater read range and faster data transfer rates compared to other identification methods

·     Enhanced durability and resistance to environmental factors

Principles of RFID technology and how it works

RFID technology operates based on the following principles:

·     Electromagnetic coupling:  RFID systems use radio frequency signals to establish a connection between the RFID tags and readers.  This connection enables the exchange of data. through electromagnetic waves.

·     Data storage and retrieval:  RFID tags store information about the items they are attached to, such as unique identifiers or product details.  When an RFID reader sends out a radio frequency signal, the tag responds by transmitting its stored data back to the reader.  For ultra-secure applications, tags are encoded with unique anonymised identifiers, and the data relating to the identifier is held in separate internal system applications.

·     Data processing:  The RFID reader processes the received data and forwards it to an associated software system, which translates the raw data into meaningful information for various applications.

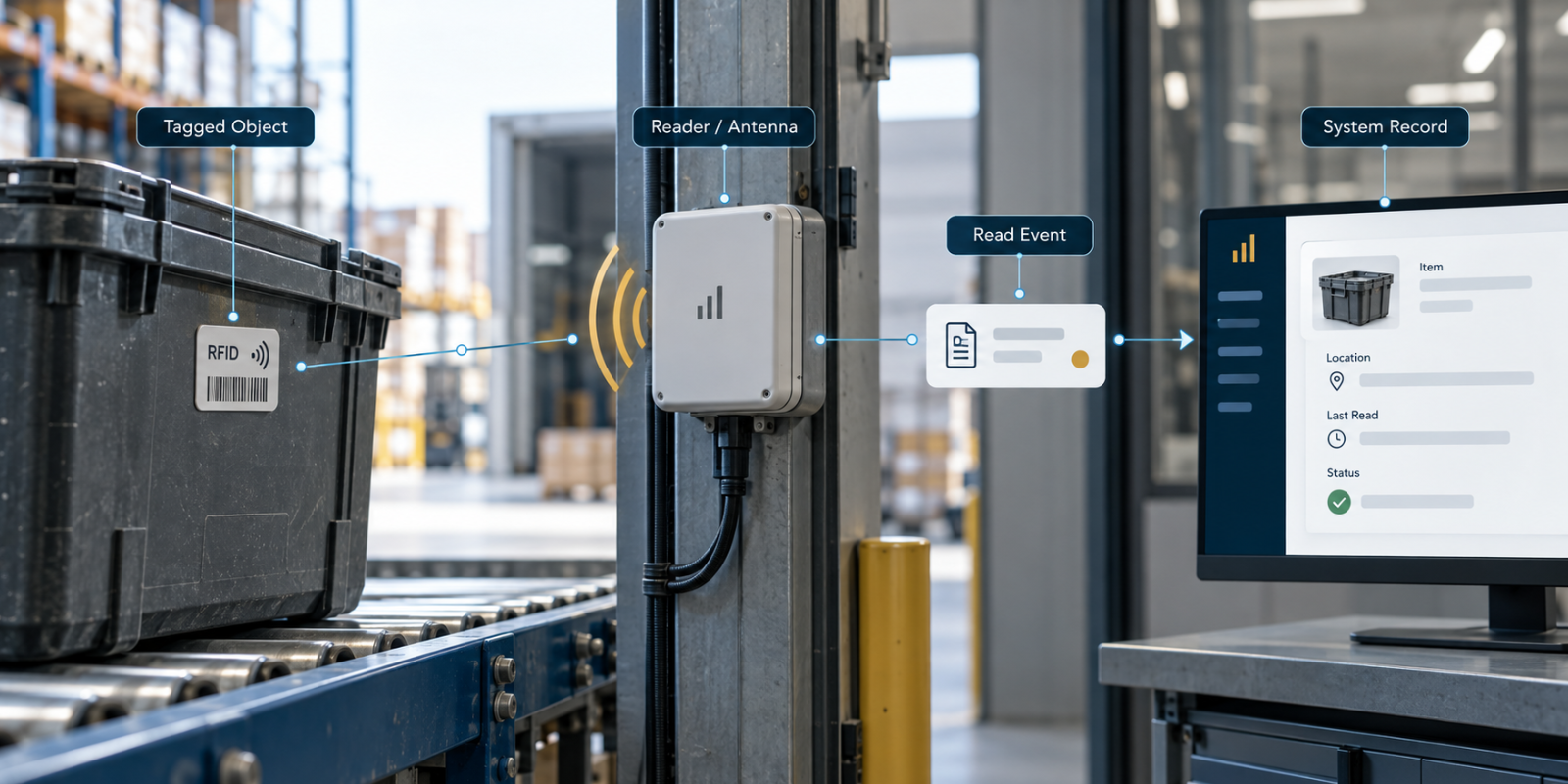

Components of an RFID system

An RFID system comprises five main components:

·     RFID tags:  An RFID tag consists of a microchip and an antenna.  The microchip stores information about the item it is attached to, or a secure anonymized identifier, while the antenna enables the tag to transmit this information to an RFID reader through radio waves.

·     RFID readers:  The RFID reader is a device that sends out radio frequency signals to communicate with the RFID tags.  When a tag receives these signals, it responds by transmitting the stored data back to the reader.

·     RFID antennas:  The RFID antenna, which is cabled to the reader, emits signals to interrogate for tags and captures the radio waves reflected by the tags, then converts them into electrical signals.  These signals are then sent to the reader for processing.

·     RFID printers:  RFID printers are specialized devices designed to print and encode RFID tags or labels.  They combine the capabilities of a traditional label printer with an RFID encoder, allowing them to print human-readable information (such as text, barcodes, or graphics) on the tag's surface while simultaneously programming the embedded microchip with the desired data.  RFID printers play a crucial role in creating and encoding RFID tags, ensuring that they contain accurate and relevant information for the intended application.

·     Software:  The software component of an RFID system manages data collection, processing, and storage.  It translates the raw data from the RFID tags into meaningful information that can be used for various applications, such as inventory management, asset tracking, or access control.  Data captured in an RFID system can be integrated into other enterprise systems such as ERP, CRM, PLM and WMS to name a few.

What types of RFID systems are there?

There are three primary types of RFID systems, classified based on the frequency range at which they operate:

·     Low-Frequency (LF) RFID:  Operating at a frequency of 125-134 kHz, LFRFID systems have a short read range (up to 10 cm) and slower data transfer rates.  They are ideal for applications where only close proximity reading is required.

·     High-Frequency (HF) RFID:  HF RFID systems operate in the 13.56 MHz frequency range and offer a read range of up to 1 meter.  They are commonly used in applications such as library management, ticketing systems, and contactless payment solutions.

·     Ultra-High Frequency (UHF) RFID:  Operating in the 860-960 MHz frequency range,UHF RFID systems have a read range of up to 12 meters and high data.  They are widely used in supply chain management, asset tracking, and inventory control applications.

Active versus passive RFID

RFID systems can also be classified based on the power source of the RFID tags:

·     Active RFID:  Active RFID tags have their own power source, typically a battery, which allows them to transmit signals over longer distances and at higher frequencies. They can typically be reliably read from up to 50 meters away and are commonly used in applications that require real-time tracking and monitoring. Active RFID tags contain circuit boards and batteries to power them, which need maintenance, and antennas that broadcast their location omni-directionally.

·     Passive RFID:  Passive RFID tags do not have an internal power source.  Instead, they rely on the energy harvested from the radio frequency signals emitted by the RFID reader to power their microchip and transmit data.  Passive tags have a shorter read range (up to25 meters) and are generally smaller, cheaper, and more durable than active tags.

Typical features of RFID software solutions

The following outlines what the typical features of an RFID software application:

·     Data collection and processing.  RFID software applications capture and process data from RFID tags, converting raw tag information into meaningful and actionable insights.

·     Tag encoding and management.  These applications allow users to encode and program RFID tags with relevant data and manage the lifecycle of the tags, including creating, updating, and deactivating them as needed.

·     Inventory tracking and management.  RFID software applications enable users to track and manage inventory, providing real-time visibility into item location, quantity, and status throughout the supply chain.

·     Asset tracking and management. The software allows for tracking and managing fixed and movable assets, such as equipment, tools, and vehicles, helping organizations optimize their utilization and reduce loss or theft.

·     Access control and security:  RFID software applications can be used to manage access control systems, granting or denying entry to individuals based on the data stored on their RFID tags or cards

·     Reporting and analytics: RFID software generally have comprehensive reporting and analytics capabilities, allowing users to generate custom reports, visualize data trends, and make data-driven decisions.

·     Integration with other systems:  RFID software applications can often be integrated with existing enterprise resource planning (ERP), warehouse management systems (WMS), or other software solutions to enhance data sharing and streamline operations.

·     User management and permissions: RFID software applications typically offer user management features, allowing administrators to create user accounts, assign roles, and set permissions based on individual responsibilities and access requirements.

·     Alerts and notifications: The software can be configured to send alerts and notifications based on specific events or conditions, such as low inventory levels, unauthorized access attempts, or asset movement outside designated areas.

·     Customizability and scalability: RFID software applications should ideally be customizable and scalable, enabling organizations to tailor the software to their specific needs and requirements and adapt it to accommodate growth or changes in their operations.

 Applications of RFID technology in various industries

 RFID technology has found widespread applications across various industries, including:

·     Retail: RFID is used for inventory management, supply chain visibility, and theft prevention in retail stores.  It enables real-time tracking of products, automatic stock replenishment and improved customer service.

·     Healthcare:  Hospitals and medical facilities use RFID for tracking medical equipment, managing patient records, and ensuring proper medication administration.  This helps to reduce errors, enhance patient safety, and streamline healthcare operations.

·     Manufacturing:  In manufacturing plants, RFID is employed for tracking raw materials, work-in-progress items, and finished products throughout the production process.  This facilitates better quality control, efficient resource utilization, and reduced lead times.  RFID is also utilised in asset management to track and locate company assets such as equipment, machinery, tools and devices reducing losses.

·     Logistics:  RFID technology is widely used in logistics. for tracking shipments, managing warehouse inventory, and automating the shipping and receiving processes.  It ensures accurate and timely delivery of goods while reducing human errors and operational costs.

·     Agriculture:  RFID technology helps in crop management by. providing real-time data on soil moisture, temperature, and nutrient levels.

Comparison with other identification technologies (barcodes, QR codes)

RFID technology offers several advantages over traditional identification methods like barcodes and QR codes. Here is a breakdown in the major differences:

RFID versus barcodes

·     RFID tags can be read without line-of-sight, whereas barcodes require direct visibility for scanning.

·     RFID systems can process hundreds of tags instantaneously, while barcode scanners can only read one barcode at a time.

·     RFID tags have a higher data storage capacity and can store more information than barcodes if desired.

·     RFID tags can be read from greater distances, providing more flexibility in the placement of readers and tags.

·     RFID tags are more durable and resistant to environmental factors like dirt, moisture, and temperature fluctuations compared to barcode labels.

·     RFID tags function in automatic data collection environments, which require no human effort or intervention.

‍RFID versus QR Codes

·     RFID tags can be read without direct line-of-sight, whereas QR codes require clear visibility for scanning.  RFID readers use radio frequency signals to detect and capture data from tags, enabling faster and more convenient scanning without the need to position the reader precisely.

·     RFID systems have the ability to process multiple tags simultaneously, whereas QR codes are typically scanned one at a time.  This feature allows for efficient tracking and identification of multiple items in real-time, making RFID ideal for inventory management and logistics operations.

·     RFID tags have a significantly higher data storage capacity compared to QR codes. RFID tags can store a wealth of information, including unique identifiers, product details, manufacturing data, and more.  In contrast, QR codes are limited in the amount of data they can store, typically linking to a URL or a small amount of text.

·     RFID tags can be read from greater distances compared to QR codes.  This attribute provides more flexibility in the placement of readers and tags.  It allows for the capture of data in situations where physical contact or close proximity is not feasible or desirable, such as automated inventory tracking in warehouses or monitoring assets in a large area.

·     RFID tags are generally more durable and resistant to environmental factors like dirt, moisture, and temperature fluctuations compared to QR codes. RFID tags can withstand harsh conditions, making them suitable for applications where barcode labels may deteriorate or become unreadable over time.

RFID versus near-field communication (NFC)

 ·     Near Field Communication (NFC) is a subset ofRFID technology that operates at a high frequency (13.56 MHz) and is specifically designed for short-range communication between devices, typically within 10 cm. While NFC shares similarities with RFID, it is primarily used for contactless payment transactions, mobile ticketing, and data sharing between smartphones.  RFID, on the other hand, offers a broader range of applications across various industries.

·     NFC-enabled devices, such as smartphones, can function as both a reader and a tag, allowing for more versatile use cases and seamless integration with existing technology. QR codes, on the other hand, require dedicated scanning devices or smartphone apps to capture and interpret the data, limiting their compatibility and integration options.

Advantages of RFID technology

 In summary, RFID technology offers several advantages over other identification methods, including:

·     Non-line-of-sight reading, which means RFID tags can be read even if they are not directly visible to the reader

·     The ability to read multiple tags simultaneously, improving efficiency and accuracy in data collection.

·     Greater read range and faster data transfer rates compared to other identification technologies

·     Enhanced durability and resistance to environmental factors, such as dust, moisture, and temperature fluctuations.

·     Improved security features, including encryption and authentication capabilities.

RFID security and privacy

To ensure security and privacy, RFID technology has the following security measures that can be implemented:

·     Encryption:  Data stored on RFID tags can be encrypted to protect it from unauthorized access and tampering.

·     Authentication:  Implementing authentication protocols betweenRFID tags and readers can help ensure that only authorized devices can access the stored data.

·     Access control:  Restricting access to RFID systems, both physically and electronically, can prevent unauthorized individuals from tampering with the system or stealing sensitive information.

·     Tag deactivation:  RFID tags can be designed to be deactivated or"killed" after a certain event or when they are no longer needed, reducing the risk of unauthorized access to the data.

RFID standards

To ensure interoperability and compatibility among RFID systems, several organizations have developed standards that define the technical specifications for various aspects of the technology, such as frequency, data communication protocols, and security features.  Some of the key RFID standards include:

·     ISO/IEC 18000:  This series of standards, developed by theInternational Organization for Standardization (ISO) and the InternationalElectrotechnical Commission (IEC), provides guidelines for air interface communications between RFID tags and readers across different frequency ranges.

·     EPC global:  A subsidiary of GS1, EPC global is responsible for developing and maintaining the Electronic Product Code (EPC) standard, which defines a unique identifier for items in the supply chain.  EPC global also develops standards for RFID hardware and software components, as well as data management and sharing protocols.

·     ISO/IEC 14443:  This standard specifies the requirements for contactless smart cards and proximity cards, which are commonly used in access control and payment applications.

The Future of RFID

The future of RFID technology looks promising, with ongoing advancements and innovations driving its adoption across a wide range of industries.  Some potential developments and trends in RFID technology include:

·     Integration with other technologies:  Combining RFID with other technologies, such as IoT devices, sensors, and artificial intelligence, can enable more advanced applications and improved data analytics.

·     Miniaturization:  As RFID components become smaller and more affordable, the technology will become more accessible and flexible, allowing for new use cases and applications.

·     Improved security features:  The development of advanced encryption and authentication techniques will help address security concerns and protect sensitive information stored on RFID tags.

·     Sustainability:  The emergence of eco-friendly RFID tags, such as biodegradable or recyclable materials, will help reduce the environmental impact of the technology.

Conclusion

RFID technology has revolutionized the way businesses and organizations identify, track, and manage assets, people, and other items.  With its numerous advantages over traditional identification methods, such as barcodes and QR codes, RFID continues to gain traction across various industries.  As the technology evolves and integrates with other emerging technologies, the potential applications and benefits of RFID will continue to grow.  By understanding the principles, components, and types of RFID systems, businesses can make informed decisions about implementing this powerful technology to improve efficiency, accuracy, and data management.

‍
