Radio Frequency Identification (RFID) technology has emerged as a pivotal tool in modern inventory management, supply chain optimization, and asset tracking. At its core, RFID utilizes electromagnetic fields to automatically identify and track tags attached to objects. These tags contain electronically stored information that can be captured by a reader through radio waves, enabling seamless data transfer without the need for direct contact.
RFID tags act as the heart of the RFID system, serving as the carriers of crucial data and identifiers. These tags come in various forms, but they generally consist of an antenna and an integrated circuit. The antenna receives and transmits radio signals, while the integrated circuit stores and processes the data. This combination enables the tag to communicate with RFID readers wirelessly, facilitating efficient data exchange.

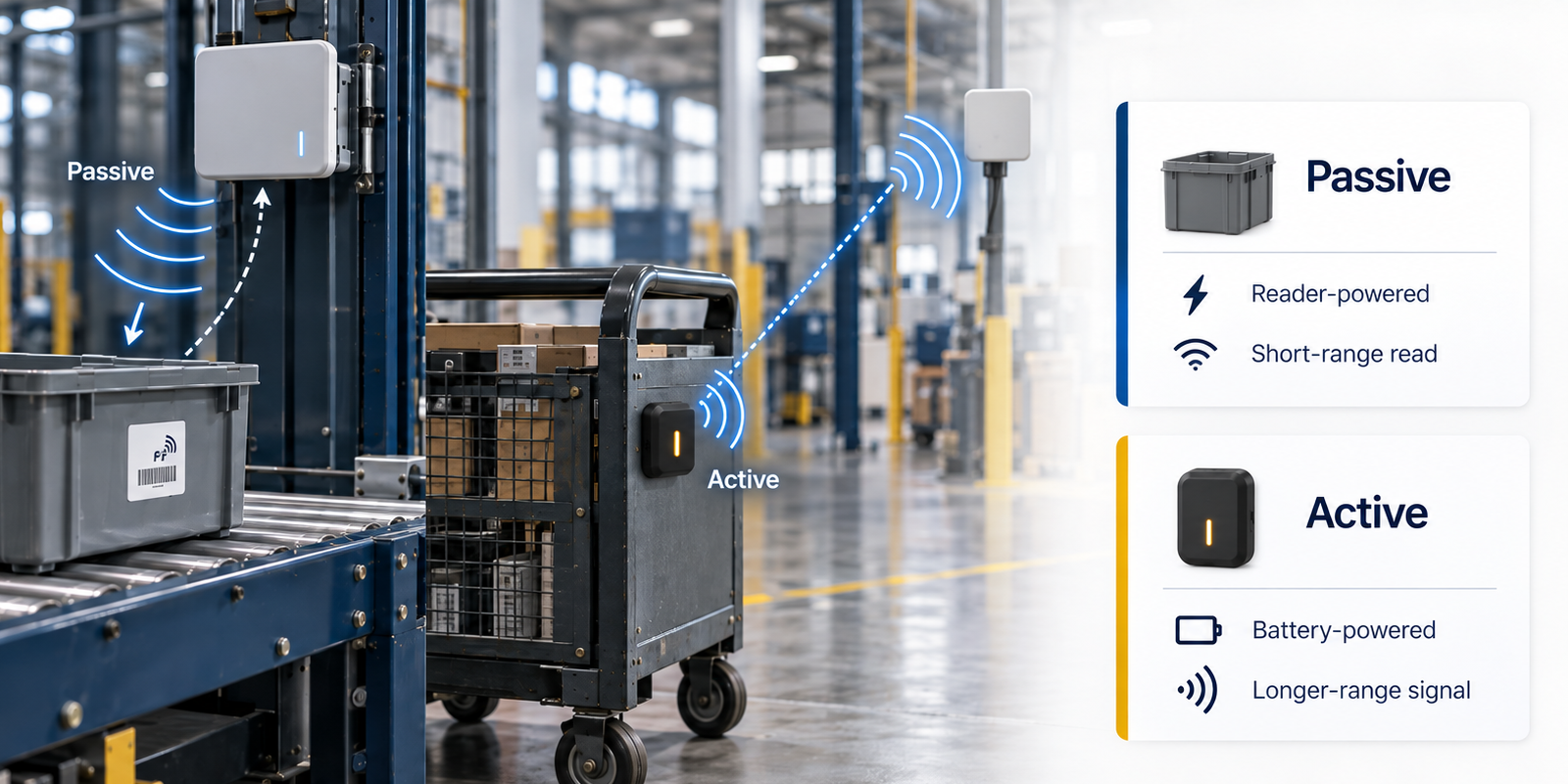

Within the realm of RFID technology, two primary tag categories exist: active and passive RFID tags. Each category exhibits distinct characteristics and functionalities that cater to diverse operational requirements.
Understanding the fundamental differences and advantages of active and passive RFID tags is crucial for implementing an effective RFID strategy tailored to specific business needs. In the subsequent sections, we will delve deeper into the intricacies of both tag types, exploring their functionalities, performance metrics, and real-world applications.
Active RFID tags, distinguished by their internal power source, operate using a battery to actively transmit signals to RFID readers. The inclusion of a power source empowers active tags to broadcast signals over longer distances, enabling read ranges that can extend up to hundreds of meters. This extended range facilitates real-time tracking and monitoring of assets, making active RFID tags ideal for applications requiring high-speed data capture and location accuracy.
The functionality of active RFID tags revolves around their ability to autonomously broadcast signals at regular intervals, allowing RFID readers to detect and capture the transmitted data. The continuous transmission capability ensures that tagged objects remain traceable and accessible within dynamic operational environments, such as large-scale logistics facilities, transportation networks, and supply chain ecosystems.
In contrast, passive RFID tags rely on the energy emitted by RFID readers through their connected antennas to facilitate data transmission. When an RFID reader emits radio waves within its operating frequency, it energizes the antenna of a nearby passive tag. Subsequently, the energized tag antenna reflects a portion of the energy back to the reader, modulated with the tag's unique identification number. This “backscattered” signal is then captured and decoded by the RFID reader, enabling seamless communication with the passive tag.
The absence of an internal power source in passive RFID tags contributes to their compact size, cost-effectiveness, and versatility in various applications. Although passive tags generally offer shorter read ranges compared to active tags (typically up to 50 meters), advancements in RFID technology have led to the development of high-performance passive tags capable of meeting the demands of asset tracking, item-level tracking, inventory management, and access control systems.
Both active and passive RFID tags share fundamental components essential for their operation, including:
Understanding the intricate functionalities and components of active and passive RFID tags lays the foundation for informed decision-making in selecting the most suitable tag type for specific operational requirements. In the subsequent sections, we will delve deeper into the performance attributes, cost considerations, and real-world applications of both tag categories.
The read range of active RFID tags is notably influenced by their internal power source, which enables them to autonomously transmit signals to RFID readers. Active RFID systems, typically operating in the ultra-high frequency (UHF) band, offer an impressive read range of up to 100 meters. This extensive read range capability allows for real-time tracking and monitoring of assets across large spaces, making active tags indispensable for applications involving high-speed data capture and location accuracy.
Passive RFID tags, reliant on the energy emitted by RFID readers, exhibit varying read ranges depending on the frequency and environmental factors. Low-frequency and high-frequency passive tags are generally read from within three feet (1 meter), while UHF passive tags have the potential for read ranges up to 50 meters, as reported by [RFID Journal](https://www.rfidjournal.com/faq/what-is-the-read-range-for-a-typical-rfid-tag).
The performance disparities between active and passive RFID tags significantly influence their real-world applications. Active RFID tags, with their extended read ranges and real-time tracking capabilities, find extensive utilization in large-scale logistics facilities, transportation networks, and supply chain ecosystems.
On the other hand, the cost-effectiveness and versatility of passive RFID tags make them well-suited for item-level tracking, access control systems, and inventory management in diverse operational environments, as mentioned by HID Global (https://blog.hidglobal.com/2022/09/short-guide-rfid-tag-read-range-eight-faqs). The ability of passive tags to accommodate varying read ranges based on frequency and technological advancements further enhances their adaptability to specific use cases, showcasing the evolving landscape of RFID technology.
Passive RFID tags present a unique advantage for manufacturers operating in secure environments by enabling the creation of tailored "read zones." These designated zones allow for precise control over tag readability, effectively mitigating security risks in classified, sensitive, or SCIF environments. By implementing specific read zones, manufacturers can ensure that their passive RFID systems operate seamlessly within restricted areas, enhancing operational security and confidentiality measures to meet stringent requirements.
Understanding the distinct performance attributes and read ranges of active and passive RFID tags is pivotal in aligning tag selection with the operational requirements and objectives of diverse industries and applications.
The implementation cost of active RFID tags primarily revolves around the higher unit cost of the tags, ranging from $15 to $50 or more per tag. The cost variability is attributed to factors such as the size of the battery included, the amount of memory on the microchip, and the overall functionality of the tag. Additionally, active RFID systems entail the deployment of infrastructure to support tag communication, including RFID readers and associated networking equipment, contributing to the overall investment required for seamless integration.
In contrast, passive RFID tags offer a cost-effective alternative, with basic tags priced as low as $0.10 for printable tags to a few dollars per durable encased tag, making them incredibly economical for large-scale deployments. The affordability of passive tags stems from their simplicity and reliance on RFID reader energy for operation, eliminating the need for an internal power source and complex circuitry. However, it's important to consider additional costs associated with RFID readers and antennas when evaluating the total cost of ownership for passive RFID solutions.
Scalability is a critical factor in determining the long-term viability and return on investment of RFID implementations. Active RFID tags, equipped with their own power source and extended read ranges, are well-suited for large-scale applications requiring real-time tracking and monitoring across expansive environments. Their ability to facilitate continuous data transmission and robust communication aligns with the demands of dynamic operational ecosystems, offering scalability to accommodate evolving business needs and technological advancements.
Passive RFID tags, characterized by their cost-effectiveness and versatility, present scalability advantages for organizations seeking to deploy RFID technology across diverse assets and inventory items. The economical nature of passive tags enables widespread adoption and integration into various operational processes, ensuring scalability without incurring prohibitive costs. Additionally, advancements in passive RFID technology, such as the development of high-performance tags with extended read ranges, further extend the scalability potential of passive RFID solutions.
Understanding the cost implications and scalability considerations associated with active and passive RFID tags is essential for informed decision-making and strategic planning when implementing RFID systems across different industry verticals and operational contexts.
Active RFID tags boast substantial data storage capacities, enabling the retention of detailed information pertinent to tracked assets. Modern active tags can hold up to 128 or 256-bits of data, as stated by Real Time Networks. This enhanced data capacity facilitates the inclusion of comprehensive asset-related information, contributing to efficient asset management and streamlined operational processes.
The durability and reliability of active RFID tags are complemented by their robust real-time tracking capabilities. Equipped with a relatively long read range and robust data storage capacity, active RFID tags facilitate real-time tracking and monitoring of assets. This real-time visibility empowers organizations to gain instant insights into asset location and status, fostering proactive decision-making and enhancing operational efficiency.
Passive RFID tags also offer notable data capacity, as they can store a substantial amount of data, making them suitable for extensive information storage. Additionally, passive RFID technology enables real-time tracking of tagged objects, providing instant visibility and monitoring. The evolution of passive RFID technology has further augmented its real-time tracking capabilities, aligning it with the demands of dynamic operational environments and diverse asset tracking scenarios.
In the realm of RFID systems, the practice of storing solely a unique nontraceable ID number on tags serves as a fundamental security measure. By limiting the stored information to this distinct identifier, organizations bolster data protection and enhance privacy safeguards within their asset tracking processes. This approach not only fortifies security protocols but also mitigates the risks associated with unauthorized access or potential data breaches. By prioritizing the use of unique nontraceable IDs, organizations, such as those in the Defense sector, uphold robust security practices essential for safeguarding sensitive information and ensuring operational resilience in asset tracking applications.
Understanding the data capacity and real-time tracking features of both active and passive RFID tags is crucial for evaluating their suitability in addressing specific asset tracking requirements and operational objectives within varied industry domains.
Active RFID technology has garnered widespread adoption across diverse industry domains. From revolutionizing asset tracking in data centers to enhancing safety and efficiency in mass-vehicle production, active RFID solutions have demonstrated their efficacy in optimizing operational workflows and enabling data-driven decision-making.
Passive RFID technology has also witnessed a proliferation of impactful applications, as evidenced by a myriad of case studies spanning sectors such as outdoor asset tracking, water utility management, manufacturing work-in-process and logistics optimization. The successful deployment of passive RFID solutions in these real-world scenarios underscores their versatility and effectiveness in addressing diverse operational challenges.
Drawing insights from the rich tapestry of active and passive RFID use cases, industry-specific recommendations can be tailored to leverage the unique strengths of each technology within distinct operational contexts. For instance, the robust real-time tracking capabilities of active RFID tags find resonance in environments demanding instantaneous asset visibility, such as data centers and manufacturing facilities. Conversely, the cost-effective nature of passive RFID tags makes them an ideal choice for large-scale logistics and inventory management applications, as well as manufacturing work-in-process and asset management, offering seamless scalability and affordability.
By delving into the diverse use cases and industry applications of both active and passive RFID technologies, organizations can glean valuable insights to inform strategic decisions and optimize the integration of RFID solutions within their specific operational landscapes.
Active RFID tags offer distinct advantages such as extended read ranges, enabling real-time tracking over larger areas. Moreover, their robust data storage capacities and long battery life contribute to reliable and continuous asset monitoring. However, the cost associated with active RFID tags can be a significant drawback, as they are generally more expensive than passive tags.
Passive RFID tags are characterized by their cost-effectiveness and suitability for scalable deployment, with the ability to be produced at a lower cost and in various form factors, enhancing their versatility. However, their limited read range and storage capacity are possible disadvantages, potentially restricting their applicability in certain tracking scenarios, unless supported by more advanced RFID software.
Key decision-making factors for choosing between active and passive RFID tags revolve around the specific requirements of the intended application. The extended read range and real-time tracking capabilities of active RFID tags make them conducive to scenarios necessitating comprehensive asset visibility across expansive operational environments. Conversely, the cost-effectiveness and scalability of passive RFID tags render them suitable for applications where large-scale asset tracking and inventory management are paramount.
Understanding the nuanced advantages and disadvantages of both active and passive RFID tags is fundamental for informed decision-making when selecting the most fitting technology to address distinct operational needs within diverse industry contexts.
The exploration of RFID technology and tag usage has unveiled a spectrum of key insights. Active RFID tags offer extensive read ranges and robust data storage capacities, empowering real-time tracking over large areas. In contrast, passive RFID tags present cost-effectiveness and versatility, albeit with limited but still substantive read ranges. Both technologies have distinct advantages and limitations that warrant careful consideration in varied operational contexts.
In scenarios necessitating real-time tracking and comprehensive asset visibility across expansive environments, the adoption of active RFID tags is recommended. Industries such as manufacturing, healthcare, and logistics stand to benefit from the enhanced capabilities of active RFID technology. Conversely, passive RFID tags are well-suited for large-scale logistics, inventory management, and applications where cost-effective scalability is paramount.
The future outlook for RFID technology and tag usage is poised for continued innovation and integration across diverse industry domains. Advancements in sensor technology, data analytics, and connectivity are anticipated to further enhance the capabilities of RFID solutions, fostering enriched asset tracking, supply chain optimization, and operational efficiency. As the Internet of Things (IoT) ecosystem expands, the seamless integration of RFID technology is expected to play an increasingly pivotal role in driving interconnected, data-driven operational workflows and unlocking new frontiers of efficiency and productivity.
The evolving landscape of RFID technology holds promise for transformative impact across industries, paving the way for heightened operational agility, enhanced asset visibility, and optimized resource utilization.
