Understanding RFID Tracking: What It Means and How It Works

When people say they want to "track" something with RFID, they often mean several different things without realizing it. One team wants to know whether a tool is still in the crib. Another wants to know when a pallet crossed a dock door. A third wants to see the last place an asset was observed, while somebody else is imagining a live map with a moving dot. All of those can be described as tracking, but they are not the same technical requirement and they do not lead to the same system design.

That is the most useful place to begin. RFID tracking is not a single capability so much as a set of ways to observe identified objects as they move through a process. The technology can be extremely effective when the observation the business needs is defined clearly. It becomes expensive or disappointing when "tracking" is left vague and the system is expected to answer every location question at once.

If you are looking for the physics of how a passive tag gets power and replies to a reader, start with What is RFID and How Does It Work? and then the deeper explanation of how passive RFID works without a battery. This article starts one layer above that and focuses on what the observations mean once an RFID system is deployed in an operation.

The word tracking needs a definition

In a warehouse, "track this pallet" may only mean that the system should know when the pallet arrived, when it moved into storage, and when it left shipping. In a manufacturing plant, it may mean knowing which operation a work order most recently reached. In an asset program, it may mean preserving enough movement history that a technician can go directly to the last known area instead of searching the facility. Those are all useful forms of tracking even though none requires a continuous coordinate.

This distinction is why passive RFID is often more useful than people first assume. A passive tag does not broadcast continuously, but a reader installed at the right physical boundary can create a highly trustworthy transition event. If the business knows that asset A entered Building 3 at 9:42 a.m., or work order 1847 moved into inspection at 2:16 p.m., the system may have exactly the visibility the process needs. Our RFID and RTLS guide is the better place to go when the requirement genuinely calls for repeated zone level or broader location.

Presence asks whether the item is here

Presence is the simplest tracking question: is this tagged object currently in a defined area? A tool crib, cabinet, rack, staging zone, room or secured space can all be treated as areas whose contents matter operationally. The system does not need to calculate an exact coordinate to answer that question; it needs enough evidence to say that the item belongs to the current population of that zone.

This pattern is useful for asset tracking, tool control and some inventory applications because the business often cares more about availability than precise position. If a technician needs a calibrated tool, knowing that the tool is currently in the correct crib and eligible for use may matter much more than knowing which shelf coordinate it occupies. In a broader program, presence events can also support alerts when an asset appears where it should not, although the quality of those alerts depends on how confidently the read zone can be isolated.

Transition tracking records that something crossed a boundary

Transition events are where passive RFID is especially strong. Instead of attempting to cover an entire building, a reader is placed where physical movement already has process meaning: a dock door, conveyor, work cell entrance, inspection point or crib boundary. When a tagged object crosses that point, the system has evidence that the business state probably changed as well.

This is the model behind many successful warehouse RFID and work in process deployments. A read at receiving can become an arrival event, while a read between machining and inspection can become a production transition. The important engineering problem is not maximizing how far the antenna can read. It is creating enough separation that the intended crossing is captured while pallets, tools or work sitting nearby are not misinterpreted as movement.

Last seen is useful when it is described honestly

A last seen location means exactly what it says: this is the most recent place the system reliably observed the object. It does not mean the item has remained there continuously since that moment. That distinction sounds minor, but it is one of the most important credibility issues in RFID tracking because users quickly stop trusting systems that present inferred location as observed fact.

Last seen can still be extremely valuable. At a campus such as Northrop Grumman's Space Park, where FactorySense has supported asset visibility across approximately 1.5 million square feet and 46 buildings, narrowing a search to the most recent observed building or area can remove much of the time previously spent looking for equipment. The Space Park case study shows what that kind of large scale asset program looks like in practice, while our article on scaling RFID tracking across sites and operations explains why the event model becomes more important as the footprint grows.

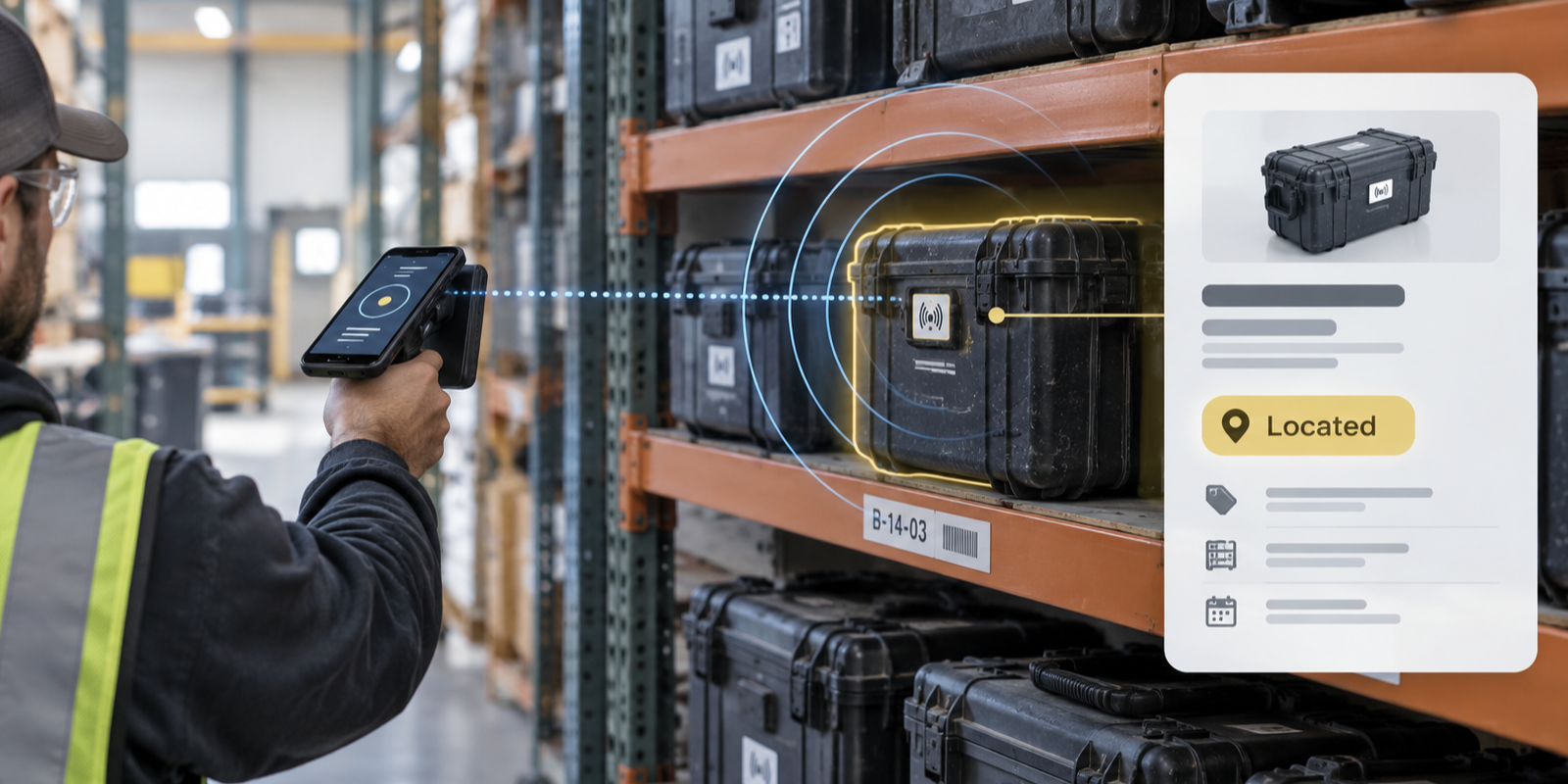

Handheld search solves a different problem

Fixed infrastructure is not always the economical way to answer a location question. If the ordinary process already records enough movement to narrow an asset to a room or aisle, a handheld reader can be used only when somebody actually needs to find it. The operator walks the area while the handheld reports stronger or weaker tag response, which can reduce a broad search to a much smaller physical space.

This hybrid model is common because it avoids installing readers everywhere merely to handle occasional exceptions. Fixed reads maintain the history and handhelds close the gap when the item is not where expected. The same idea appears in inventory management, where fixed readers may capture normal movements and handhelds are used for cycle counts, investigations and rapid audits.

Repeated location is where RTLS enters the conversation

If the requirement is to know repeatedly which zone contains an asset, or to estimate position throughout a wider area without waiting for the asset to cross a checkpoint, the architecture changes. Active RFID, BLE and other RTLS technologies use powered devices or denser infrastructure to provide repeated presence or location observations. Those systems can be appropriate for high value mobile equipment, vehicles, carts or other assets where the additional infrastructure and device maintenance are justified by the business need.

The mistake is assuming every tracking project needs that level of coverage. A passive checkpoint system may answer a production or logistics question at much lower complexity, while an active RTLS system may be the only sensible answer for another use case. The RFID and RTLS architecture guide compares those approaches in more detail and is a better basis for deciding than generic claims about read range or accuracy.

A reader observation is not yet a tracking event

This is where the software layer matters. A passive reader may report the same EPC dozens or hundreds of times while an item remains in its field. If every one of those observations were treated as movement, the tracking history would be useless. Software has to consider where the read occurred, which antenna saw it, when the observations began and ended, what object the EPC represents, and what process state was expected before deciding that something meaningful happened.

That separation between observations and events also makes integration much cleaner. The ERP or MES should not need to understand reader noise, antenna identifiers or duplicate EPC reports. It should receive a smaller number of business events with clear meaning, such as received, entered inspection, moved to storage, left tool crib or shipped. Our RFID integration guide goes through that architecture in detail, and GS1 EPCIS provides an established standard model for representing visibility events across systems and organizations.

Tracking quality depends on what the reader should ignore

A good tracking system is defined as much by what it does not report as by what it does. A dock portal that reads every pallet staged beside the door may generate impressive read counts but poor movement data. A work cell antenna that sees a traveler on the next station can make WIP appear to advance before the physical process actually did. In both cases, the problem is not simply "bad RFID"; it is that the read zone does not align cleanly with the business event.

This is why pre-installation testing should use the real objects, real movement paths and realistic surrounding inventory. It is also why adding reader power is not a universal fix. Sometimes the correct adjustment is less power, different antenna geometry, shielding, a different tag placement, or a change in where the read point sits in the process. When an existing deployment produces events the floor no longer trusts, our guide to why RFID systems fail and how to diagnose them is the right next step.

Tracking WIP is really tracking process state

Work in process is a good example of why location alone is often the wrong abstraction. A manufacturer may care less about the coordinates of an assembly than about whether it has left machining, reached inspection, entered rework or is waiting in a queue. The read point becomes valuable because it marks a production state that should also exist in the MES or ERP.

That is the logic behind FactorySense's work with CAES Systems, now part of Honeywell, where a struggling active RFID deployment was replaced with a passive architecture for work in process and mobile asset visibility. The CAES Systems case study is useful because it shows that better tracking came from redesigning the whole event chain, not simply installing a different reader. If WIP is the specific problem you are working on, the WIP tracking guide goes deeper into tagging level, read point placement and system integration.

Warehouse tracking is a sequence of controlled observations

A warehouse rarely needs every pallet to report a live coordinate continuously. What it does need is confidence around the movements that affect inventory and fulfillment: receiving, putaway, replenishment, picking, staging and shipping. Fixed readers can capture selected handoffs automatically, while handhelds can support counts and exceptions where permanent coverage would not justify itself.

The operational advantage is that the system record can stay closer to the physical warehouse without adding another deliberate scan at every movement. The limitation is equally important: a pallet last observed entering a storage area is not necessarily known to an exact slot unless the process or infrastructure provides that evidence. Our warehouse RFID guide explains that distinction and the associated WMS or ERP integration in more detail.

Asset tracking should connect location with status

For long lived assets, location is usually only one part of the useful record. A calibrated tool may be physically nearby but unavailable because its calibration has expired. A test set may be in the correct building but assigned to another program. A cart may be present but undergoing maintenance. RFID becomes more valuable when the observation is joined to those business states rather than displayed as an isolated dot on a map.

This is why the asset tracking guide treats tags, fixed readers, handhelds and software as one system, and why the broader scalability article emphasizes common identity and event definitions across sites. The location history is evidence; the enterprise record is what gives that evidence operational meaning. Keeping those layers separate also makes it easier to explain what the system actually knows when an operator questions a location or status.

What should you ask before choosing a tracking architecture?

Start by asking what decision would change if the system knew more. If the problem is search time, last seen plus handheld search may be enough. If the problem is an unrecorded production handoff, a passive transition read may solve it. If a high value mobile asset must be known repeatedly across a large campus, then active RTLS may justify the added infrastructure. Framing the question this way prevents the architecture from becoming more complicated than the operating problem.

The next questions are about trust. What counts as a valid event, what nearby activity must be ignored, how current does the information need to be, and what should happen when the system is uncertain? Those answers should exist before hardware is selected. If you are at the beginning of that process, the pre-installation guide lays out the site survey and pilot work, while What is RFID and How Does It Work? remains the best foundation if you want to revisit the underlying technology.

Good RFID tracking is modest about what it knows

The best tracking systems do not try to make every observation look more precise than it is. They distinguish between what was directly observed, what the software inferred, and what the enterprise system now believes. That honesty is what lets people trust the history when they actually need it, whether they are looking for a missing asset, investigating a delayed work order or reconstructing what happened to a shipment.

RFID is especially effective when the business can identify a few physical events that matter and design the infrastructure around observing them well. From there, location history, alerts, search, analytics and integration become much easier to build because the underlying events have a clear meaning. That is a much more useful definition of RFID tracking than promising that every tagged thing is visible everywhere, all the time.
